Nichicon URS2D680MHD is a 68uF aluminum electrolytic capacitor with a 20% tolerance and a voltage rating of 200V. It has a radial package with a diameter of 18mm and a height of 20mm. The capacitor is designed for through-hole mounting and has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It is RoHS compliant and available in a bulk packaging quantity of 250.
PackageRadial
Capacitance68uF
Voltage Rating200V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon URS2D680MHD technical specifications.
General
| Capacitance | 68uF |
| Package/Case | Radial |
| Diameter | 18mm |
| Height | 20mm |
| Height - Seated (Max) | 0.65inch |
| Lead Pitch | 7.5mm |
| Leakage Current | 644uA |
| Length | 20mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 490mA |
| RoHS Compliant | Yes |
| Series | URS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon URS2D680MHD Datasheet
Download the complete datasheet for Nichicon URS2D680MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

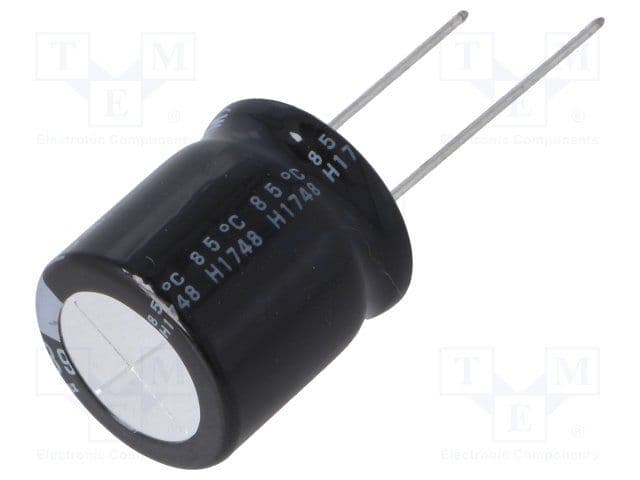

Product Images
