Technical Specifications
Nichicon URZ2G100MHD1TN technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Height | 15mm |
| Height - Seated (Max) | 0.65inch |
| Lead Pitch | 0.295inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Ripple Current | 100mA |
| RoHS Compliant | Yes |
| Series | RZ |
| Tolerance | 20% |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon URZ2G100MHD1TN Datasheet
Download the complete datasheet for Nichicon URZ2G100MHD1TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

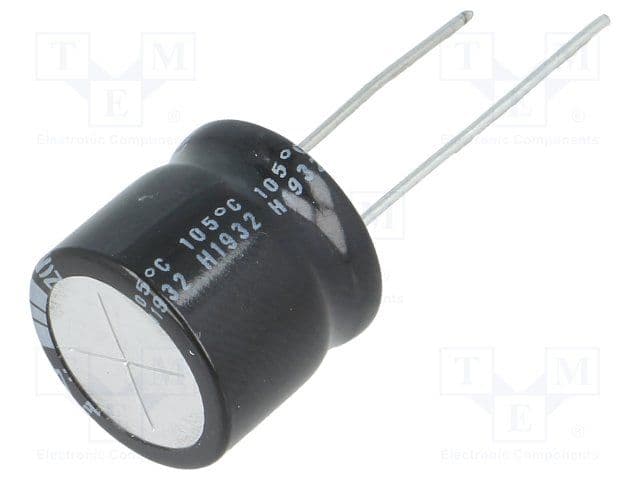

Product Images
