The Nichicon USP1C470MDD is a 47uF aluminum electrolytic capacitor with a 16V voltage rating. It features a radial package with a 6.3mm diameter and 7mm height, and is designed for through-hole mounting. The capacitor has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It is RoHS compliant and has a tolerance of 20%. The USP1C470MDD has a life of 2000 hours and a leakage current of 37.6uA.
PackageRadial
Capacitance47uF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon USP1C470MDD technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Diameter | 6.3mm |
| Height | 7mm |
| Height - Seated (Max) | 0.315inch |
| Lead Pitch | 2.5mm |
| Leakage Current | 37.6uA |
| Length | 7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 75mA |
| RoHS Compliant | Yes |
| Series | SP |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon USP1C470MDD Datasheet
Download the complete datasheet for Nichicon USP1C470MDD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

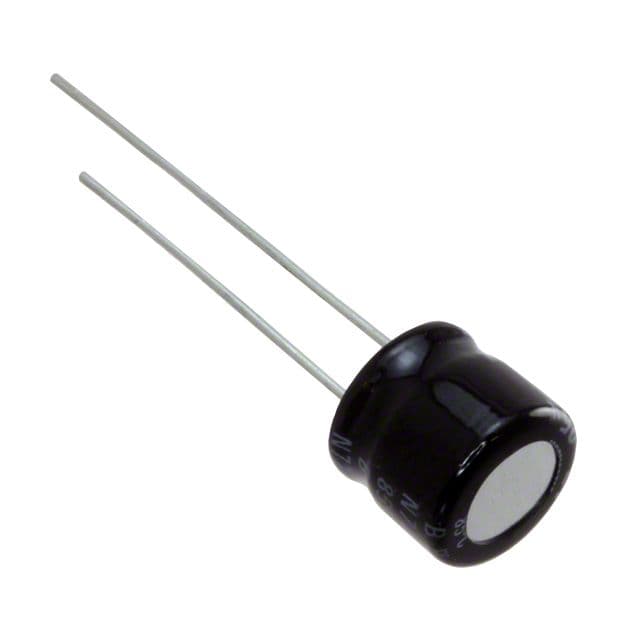

Product Images
