Aluminum electrolytic capacitor with 33µF capacitance and 16V DC rated voltage. Features a 20% tolerance, 55mA ripple current, and 2000-hour life at 85°C. Radial package with 2mm lead pitch, 5mm diameter, and 7mm height. Through-hole mounting with a leakage current of 5.28µA.
PackageRadial
Voltage16V
Capacitance33uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon USR1C330MDD technical specifications.
General
Capacitance
33uF
Package/Case
Radial
Construction
RADIAL
Diameter
5mm
Dielectric Material
Aluminium
Dissipation Factor
0.16%
Features
General Purpose
Height
7mm
Height - Seated (Max)
0.315inch
Lead Diameter
0.45mm
Lead Pitch
2mm
Leakage Current
5.28uA
Length
7mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
55mA
RoHS Compliant
Yes
Series
SR
Termination
Radial
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon USR1C330MDD Datasheet
Download the complete datasheet for Nichicon USR1C330MDD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

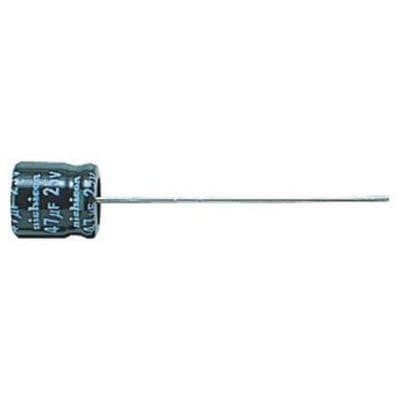

Product Images
