Aluminum electrolytic capacitor with 22µF capacitance and 50V DC voltage rating. Features a 20% tolerance, 58mA ripple current, and 2000-hour life at 85°C. Radial package measures 6.3mm in diameter and 7mm in height, with a 2.5mm lead pitch. Through-hole mounting, lead-free, and RoHS compliant.
PackageRadial
Voltage50V
Capacitance22uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon USR1H220MDD technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Construction
RADIAL
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.1%
Features
General Purpose
Height
7mm
Height - Seated (Max)
0.315inch
Lead Diameter
0.45mm
Lead Free
Lead Free
Lead Pitch
2.5mm
Leakage Current
11uA
Length
7mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
58mA
RoHS Compliant
Yes
Series
SR
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon USR1H220MDD Datasheet
Download the complete datasheet for Nichicon USR1H220MDD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

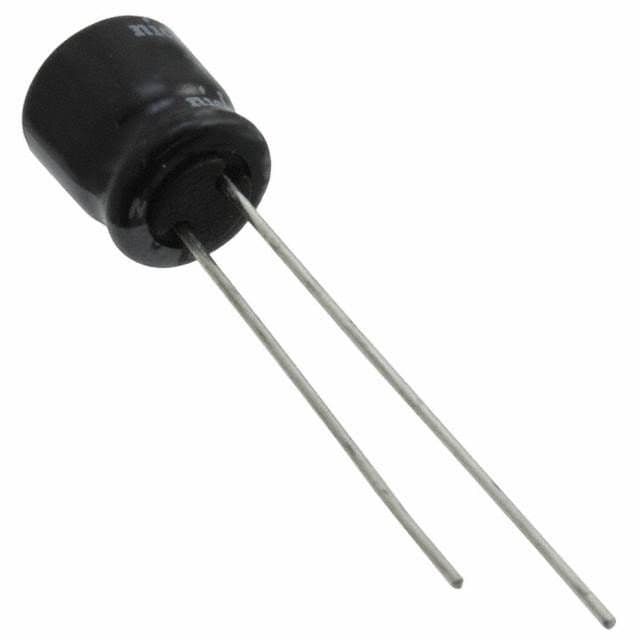

Product Images
