Aluminum electrolytic capacitor, 33µF capacitance, 50V voltage rating, and 20% tolerance. Features a radial package with 3.5mm lead pitch, 8mm diameter, and 7mm height. Operates from -40°C to 85°C with a 2000-hour life expectancy at 85°C and 75mA ripple current. Includes 16.5µA leakage current and is RoHS compliant.
PackageRadial
Voltage50V
Capacitance33uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon USR1H330MDD technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.1% |
| Features | General Purpose |
| Height | 7mm |
| Height - Seated (Max) | 0.315inch |
| Lead Diameter | 0.5mm |
| Lead Pitch | 3.5mm |
| Leakage Current | 16.5uA |
| Length | 7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 75mA |
| RoHS Compliant | Yes |
| Series | SR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon USR1H330MDD Datasheet
Download the complete datasheet for Nichicon USR1H330MDD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

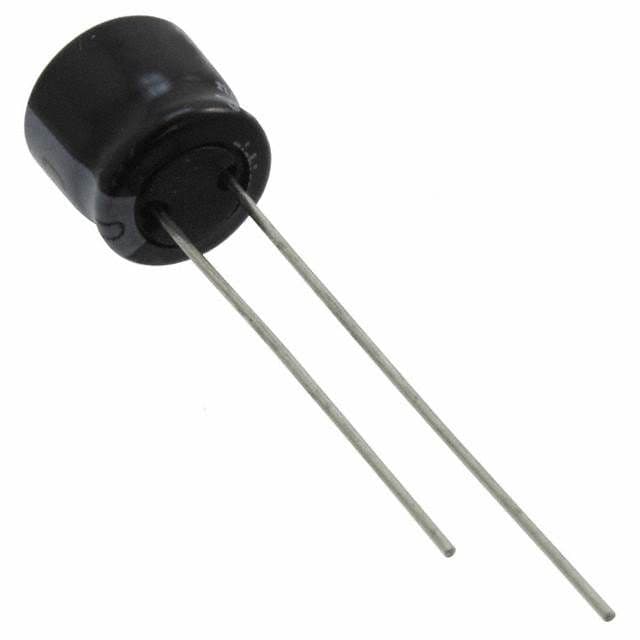

Product Images
