Aluminum electrolytic capacitor, 330nF capacitance, 50V DC rated voltage, 20% tolerance. Features radial construction, 4mm diameter, 7mm height, 1.5mm lead pitch, and 0.45mm lead diameter. Operates from -40°C to 85°C with a 2000-hour life expectancy at 85°C. Offers 3.5mA ripple current and 3uA leakage current. RoHS compliant and supplied in bulk packaging.
PackageRadial
Voltage50V
Capacitance330nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon USR1HR33MDD technical specifications.
General
Capacitance
330nF
Package/Case
Radial
Construction
RADIAL
Diameter
4mm
Dissipation Factor
0.1%
Height
7mm
Lead Diameter
0.45mm
Lead Pitch
1.5mm
Leakage Current
3uA
Length
7mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
3.5mA
RoHS Compliant
Yes
Series
SR
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon USR1HR33MDD Datasheet
Download the complete datasheet for Nichicon USR1HR33MDD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

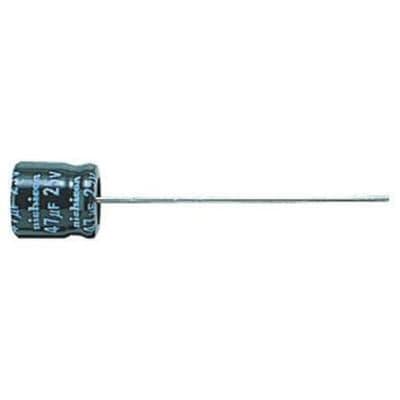

Product Images
