Nichicon
UUA1V470MNL1GS
Cap Aluminum Lytic 47uF 35V 20% (8 X 10mm) SMD 92mA 5000h 105°C Automotive T/R
PackageRadial
Capacitance47uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UUA1V470MNL1GS technical specifications.
General
Capacitance
47uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Features
General Purpose
Height
10mm
Height - Seated (Max)
0.413inch
Leakage Current
16.45uA
Length
10mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
92mA
RoHS Compliant
Yes
Series
UA
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUA1V470MNL1GS Datasheet
Download the complete datasheet for Nichicon UUA1V470MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

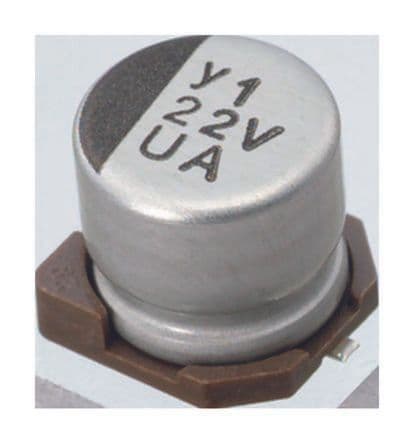

Product Images
