Nichicon
UUA1V4R7MCL1GS
Cap Aluminum Lytic 4.7uF 35V 20% (4 X 5.8mm) SMD 16mA 3000h 105°C Automotive T/R
PackageRadial
Capacitance4.7uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UUA1V4R7MCL1GS technical specifications.
General
Capacitance
4.7uF
Package/Case
Radial
Features
General Purpose
Height - Seated (Max)
0.24inch
Lead Free
Lead Free
Lead Pitch
1mm
Leakage Current
3uA
Length
5.8mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Ripple Current
16mA
RoHS Compliant
Yes
Series
UA
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUA1V4R7MCL1GS Datasheet
Download the complete datasheet for Nichicon UUA1V4R7MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

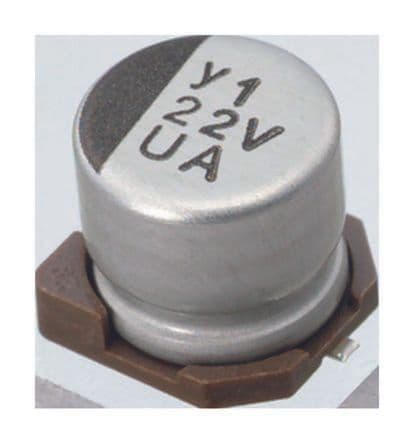

Product Images
