68µF, 10V aluminum electrolytic capacitor with 20% tolerance. Features a 230mA ripple current rating and low impedance of 440mR. Operating temperature range from -55°C to 105°C, with a 2000-hour life expectancy. SMD/SMT termination in a 6.3 x 5.8mm cylindrical package.
PackageRadial
Capacitance68uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UUD1A680MCL1GS technical specifications.
General
Capacitance
68uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.2%
Height
5.8mm
Height - Seated (Max)
0.228inch
Impedance
440mR
Lead Free
Lead Free
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
230mA
RoHS Compliant
Yes
Series
UD
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUD1A680MCL1GS Datasheet
Download the complete datasheet for Nichicon UUD1A680MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

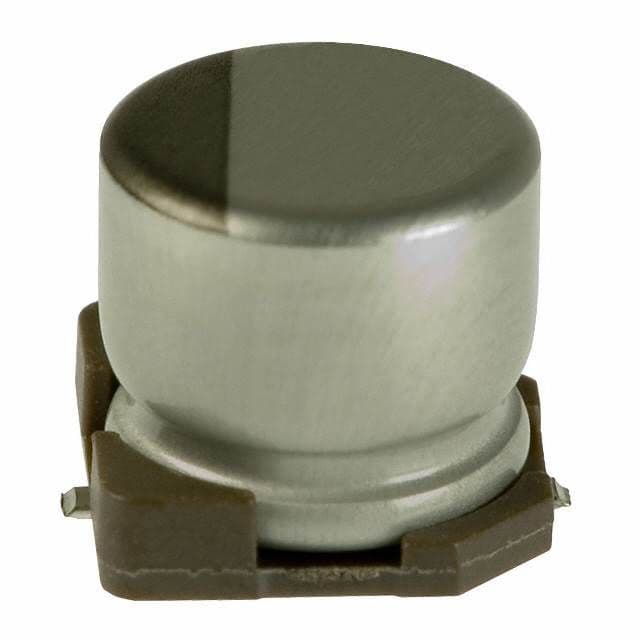

Product Images
