Standard aluminum electrolytic capacitor, 470µF capacitance, 16V voltage rating. Features 20% tolerance, 105°C maximum operating temperature, and 5000-hour lifespan. Cylindrical construction with 8mm diameter and 10mm height, 3.1mm lead pitch, and 1.1mm lead diameter. SMD/SMT termination, 450mA ripple current, 170mΩ impedance, and 3µA leakage current.
PackageRadial
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UUD1C471MNL1GS technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dissipation Factor
0.2%
Height
10mm
Impedance
170mR
Lead Diameter
1.1mm
Lead Free
Lead Free
Lead Pitch
3.1mm
Leakage Current
3uA
Length
10mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
450mA
Ripple Current (AC)
450mA
RoHS Compliant
Yes
Series
UD
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUD1C471MNL1GS Datasheet
Download the complete datasheet for Nichicon UUD1C471MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

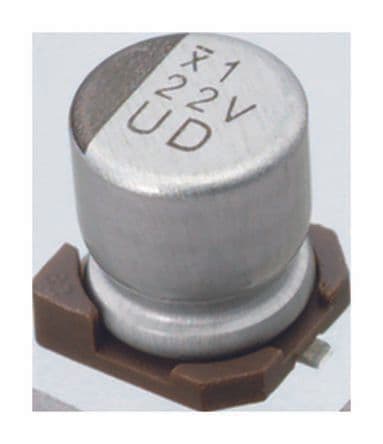

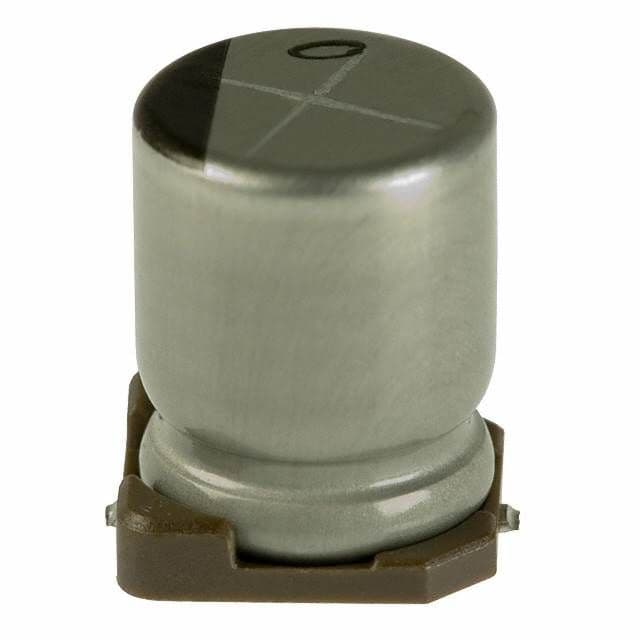

Product Images
