27µF, 25V aluminum electrolytic capacitor with 20% tolerance. Features a 230mA ripple current rating and 2000-hour life at 105°C. Cylindrical construction with SMD/SMT termination, measuring 6.3mm diameter and 5.8mm height. Low leakage current of 6.75µA and impedance of 440mΩ. Lead-free and RoHS compliant, operating from -55°C to 105°C.
PackageRadial
Capacitance27uF
Voltage Rating25V
PolarityPolar
Quick Jump:
Technical Specifications
Nichicon UUD1E270MCL1GS technical specifications.
General
Capacitance
27uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Height
5.8mm
Height - Seated (Max)
0.228inch
Impedance
440mR
Lead Free
Lead Free
Leakage Current
6.75uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Ripple Current
230mA
Ripple Current (AC)
230mA
RoHS Compliant
Yes
Series
UD
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUD1E270MCL1GS Datasheet
Download the complete datasheet for Nichicon UUD1E270MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

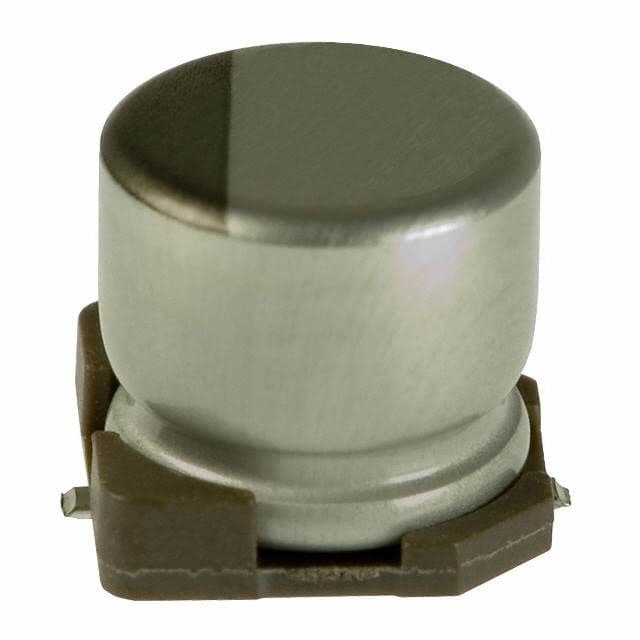

Product Images
