Polarized aluminum electrolytic capacitor, 470µF capacitance, 25V DC rated voltage, with a 20% tolerance. Features a 10mm diameter and 10mm height, cylindrical construction, and surface mount termination. Offers 2000 hours of life at 105°C, 670mA ripple current, and 90mΩ impedance. RoHS compliant and lead-free.
PackageRadial
Voltage80V
Capacitance470uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UUD1E471MNL1GS technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| Height | 10mm |
| Impedance | 90mR |
| Lead Diameter | 1.1mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.5mm |
| Leakage Current | 3uA |
| Length | 10mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 670mA |
| Ripple Current (AC) | 670mA |
| RoHS Compliant | Yes |
| Series | UD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 80V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UUD1E471MNL1GS Datasheet
Download the complete datasheet for Nichicon UUD1E471MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

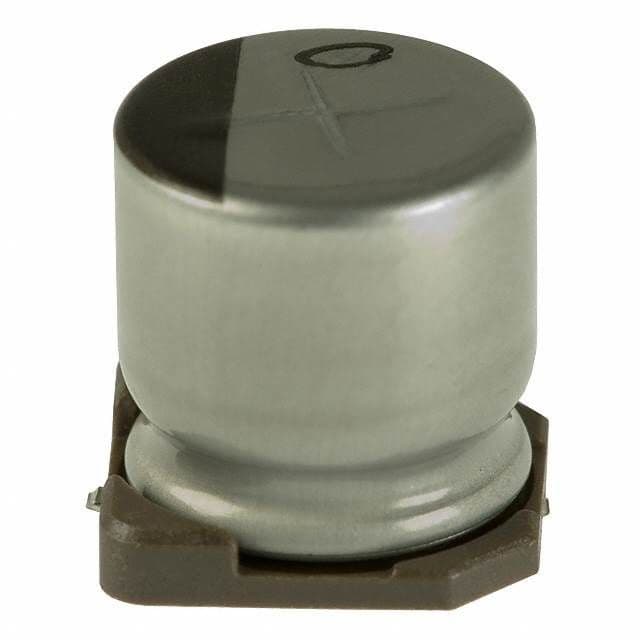

Product Images
