Nichicon
UUD1V150MCL1GS
Cap Aluminum Lytic 15uF 35V 20% (5 X 5.8mm) SMD 150mA 2000h 105°C Automotive T/R
PackageRadial
Capacitance15uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UUD1V150MCL1GS technical specifications.
General
Capacitance
15uF
Package/Case
Radial
Construction
Cylindrical
Diameter
5mm
Dielectric Material
Aluminium
Height
5.8mm
Impedance
760mR
Lead Free
Lead Free
Leakage Current
5.25uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
150mA
RoHS Compliant
Yes
Series
UD
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUD1V150MCL1GS Datasheet
Download the complete datasheet for Nichicon UUD1V150MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

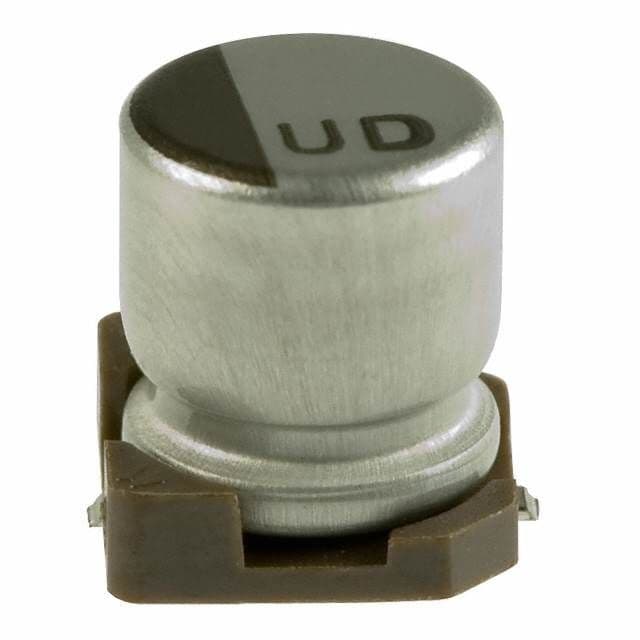

Product Images
