Aluminum electrolytic capacitor, 4.7µF capacitance, 35V DC rated voltage, and 20% tolerance. Features a 105°C maximum operating temperature, 2000-hour life, and 80mA ripple current. This cylindrical, radial component has a 4mm diameter and 5.8mm height, with SMD termination. It offers a low dissipation factor of 0.12% and 1.8Ω impedance.
PackageRadial
Capacitance4.7uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UUD1V4R7MCL1GS technical specifications.
General
Capacitance
4.7uF
Package/Case
Radial
Construction
Cylindrical
Diameter
4mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
Height
5.8mm
Impedance
1.8R
Lead Free
Lead Free
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
80mA
Ripple Current (AC)
80mA
RoHS Compliant
Yes
Series
UUD
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUD1V4R7MCL1GS Datasheet
Download the complete datasheet for Nichicon UUD1V4R7MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

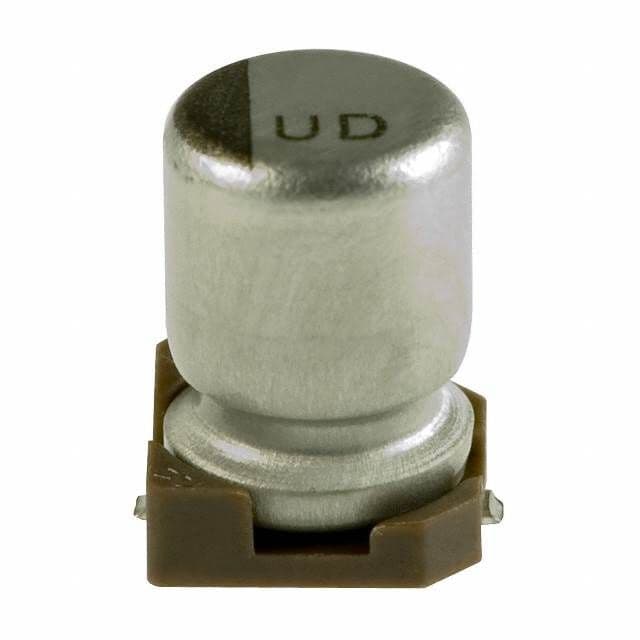

Product Images
