Technical Specifications
Nichicon UUG1C472MNQ1MS technical specifications.
General
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Height - Seated (Max) | 0.886inch |
| Leakage Current | 4uA |
| Length | 21.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 1.75A |
| RoHS Compliant | Yes |
| Series | UG |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UUG1C472MNQ1MS Datasheet
Download the complete datasheet for Nichicon UUG1C472MNQ1MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

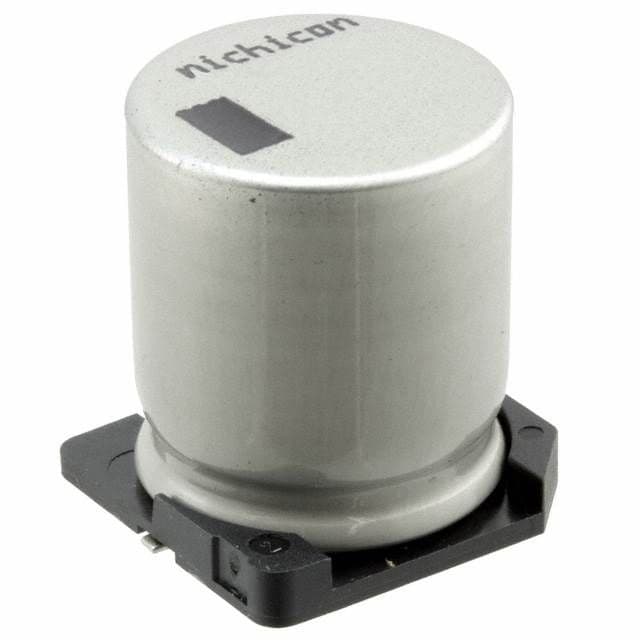

Product Images
