PackageRadial
Capacitance330uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UUJ1E331MNQ1MS technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Height
13.5mm
Leakage Current
4uA
Length
13.5mm
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
200
Packaging
Tape and Reel
Ripple Current
320mA
RoHS Compliant
Yes
Series
UUJ
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUJ1E331MNQ1MS Datasheet
Download the complete datasheet for Nichicon UUJ1E331MNQ1MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

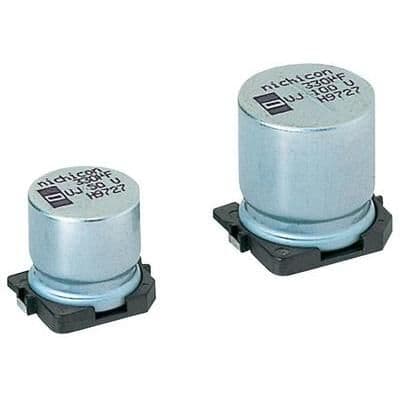

Product Images
