Technical Specifications
Nichicon UUJ1V102MNQ6MS technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Height - Seated (Max) | 0.886inch |
| Leakage Current | 4uA |
| Length | 21.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 750mA |
| RoHS Compliant | Yes |
| Series | UJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UUJ1V102MNQ6MS Datasheet
Download the complete datasheet for Nichicon UUJ1V102MNQ6MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

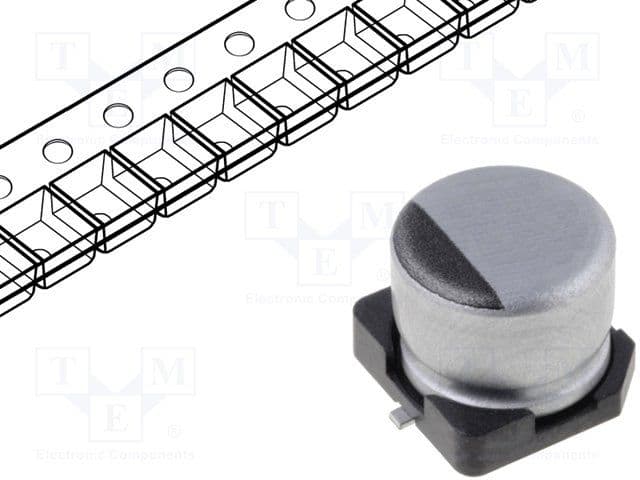

Product Images
