PackageRadial
Capacitance330uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UUJ1V331MNQ1MS technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Height
16mm
Height - Seated (Max)
0.669inch
Leakage Current
4uA
Length
16mm
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Ripple Current
360mA
RoHS Compliant
Yes
Series
UUJ
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUJ1V331MNQ1MS Datasheet
Download the complete datasheet for Nichicon UUJ1V331MNQ1MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

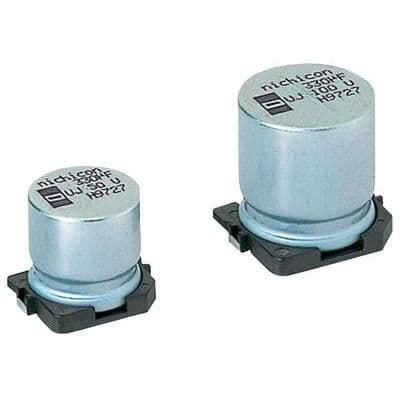

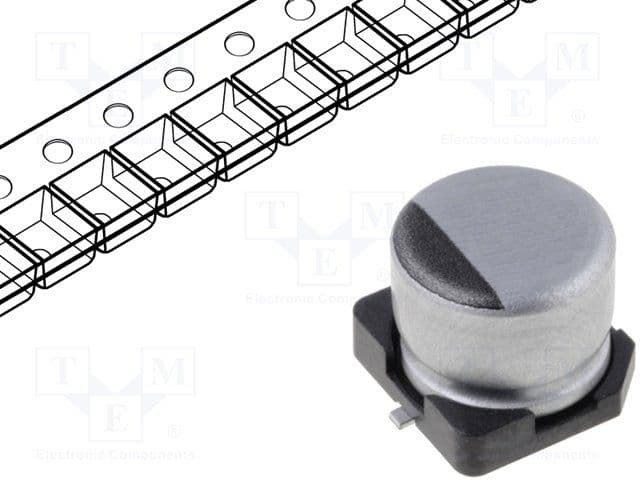

Product Images
