PackageRadial
Capacitance470uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UUJ1V471MNQ1MS technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Height
16.5mm
Leakage Current
4uA
Length
16.5mm
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
125
Packaging
Tape and Reel
Ripple Current
490mA
RoHS Compliant
Yes
Series
UUJ
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUJ1V471MNQ1MS Datasheet
Download the complete datasheet for Nichicon UUJ1V471MNQ1MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

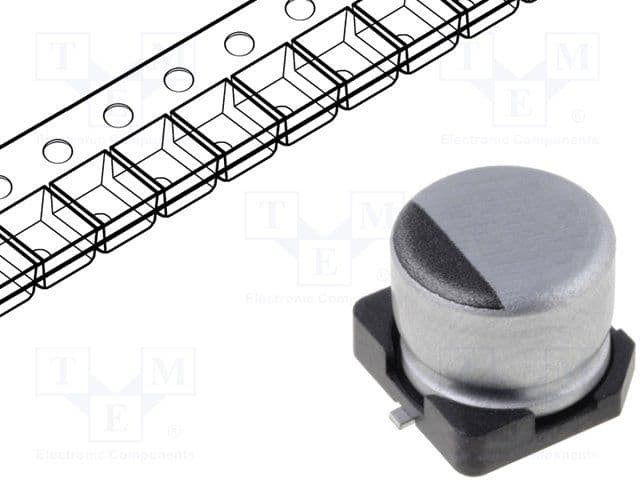

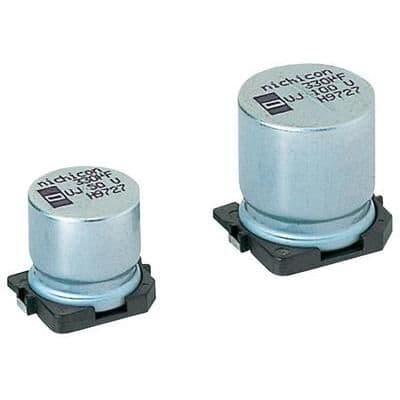

Product Images
