Aluminum electrolytic capacitor, 33µF capacitance, 35V DC rated voltage, and 20% tolerance. Features a 6.3mm diameter, 5.8mm height, and surface mount termination. Rated for 2000 hours at 85°C, with a ripple current of 55mA and a dissipation factor of 0.14%. Packaged in tape and reel.
PackageRadial
Capacitance33uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UUR1V330MCL1GS technical specifications.
General
Capacitance
33uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.14%
Features
General Purpose
Height
5.8mm
Height - Seated (Max)
0.24inch
Lead Free
Lead Free
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
55mA
Ripple Current (AC)
55mA
RoHS Compliant
Yes
Series
UR
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUR1V330MCL1GS Datasheet
Download the complete datasheet for Nichicon UUR1V330MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

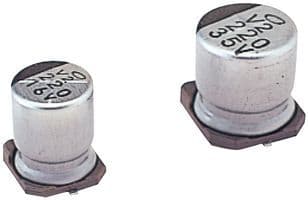

Product Images
