Polarized aluminum electrolytic capacitor with 22µF capacitance and 35V DC rated voltage. Features a 20% tolerance and 0.13% dissipation factor. Designed for surface mount applications with a 2626 (6.3mm x 6.6mm) chip package. Operates across a wide temperature range from -55°C to 105°C, offering a 2000-hour life at rated ripple current of 42mA. RoHS compliant.
PackageSMD/SMT
Voltage35V
Capacitance22uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UUT1V220MCL1GS technical specifications.
General
Capacitance
22uF
Package/Case
SMD/SMT
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.13%
Features
General Purpose
Height
5.8mm
Height - Seated (Max)
0.24inch
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
2.2mm
Leakage Current
35.25uA
Length
11mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
42mA
Ripple Current (AC)
42mA
RoHS Compliant
Yes
Series
UT
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Nichicon UUT1V220MCL1GS Datasheet
Download the complete datasheet for Nichicon UUT1V220MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

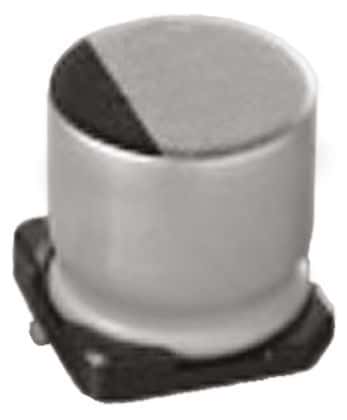

Product Images
