Aluminum electrolytic capacitor, 47µF capacitance, 35V DC rated voltage, 20% tolerance. Features 124mA ripple current, 49.35µA leakage current, and 0.12% dissipation factor. Cylindrical construction with 8mm diameter and 10mm height, designed for surface mount (SMD/SMT) with a 3.1mm lead pitch. Operates from -55°C to 105°C with a 2000-hour life rating. RoHS compliant and supplied in tape and reel packaging.
PackageRadial
Voltage35V
Capacitance47uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UUX1V470MNL1GS technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 0.12% |
| Features | General Purpose |
| Height | 10mm |
| Height - Seated (Max) | 0.413inch |
| Lead Diameter | 1.1mm |
| Lead Pitch | 3.1mm |
| Leakage Current | 49.35uA |
| Length | 10mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 124mA |
| RoHS Compliant | Yes |
| Series | UX |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UUX1V470MNL1GS Datasheet
Download the complete datasheet for Nichicon UUX1V470MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

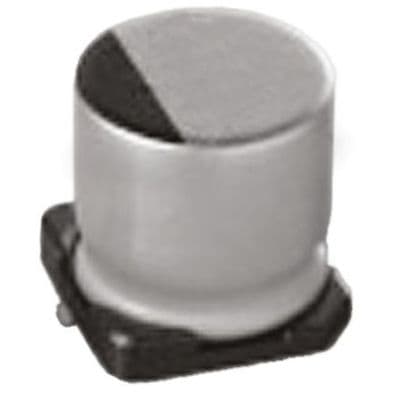

Product Images
