Standard aluminum electrolytic capacitor, 33µF capacitance, 100V DC rated voltage, 20% tolerance. Features a 10mm diameter, 10mm height, and 4.5mm lead pitch for surface mount applications. Operates from -55°C to 105°C with a 2000-hour life at rated conditions, offering 180mA ripple current and 99µA leakage current. Supplied in tape and reel packaging.
PackageRadial
Voltage100V
Capacitance33uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon UUX2A330MNL1GS technical specifications.
General
Capacitance
33uF
Package/Case
Radial
Construction
Cylindrical
Diameter
10mm
Dissipation Factor
0.08%
Features
General Purpose
Height
10mm
Height - Seated (Max)
0.413inch
Lead Diameter
1.1mm
Lead Free
Lead Free
Lead Pitch
4.5mm
Leakage Current
99uA
Length
10mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
180mA
Ripple Current (AC)
180mA
RoHS Compliant
Yes
Series
UX
Termination
SMD/SMT
Tolerance
20%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUX2A330MNL1GS Datasheet
Download the complete datasheet for Nichicon UUX2A330MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

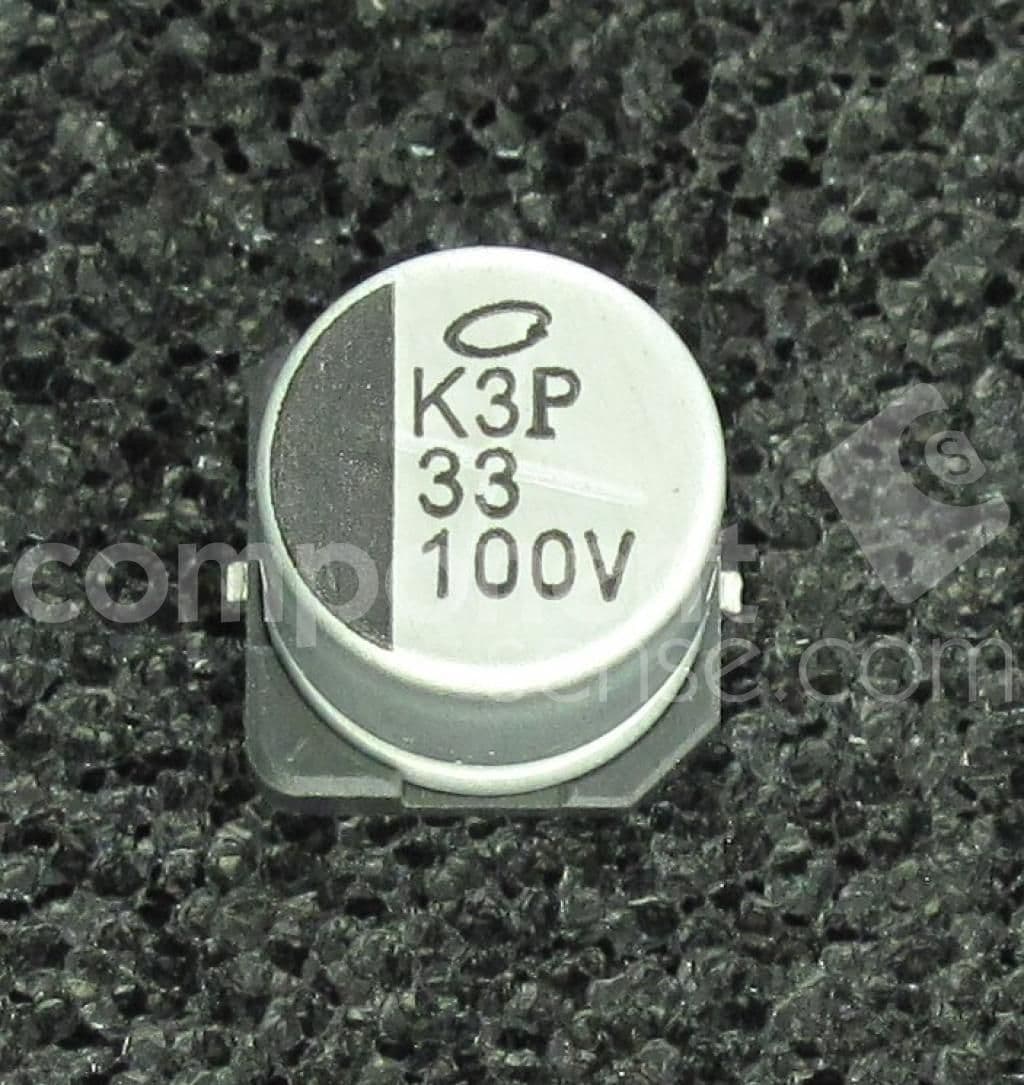

Product Images
