PackageRadial
Capacitance8.2uF
Voltage Rating400V
MountingThrough Hole
Quick Jump:
Technical Specifications

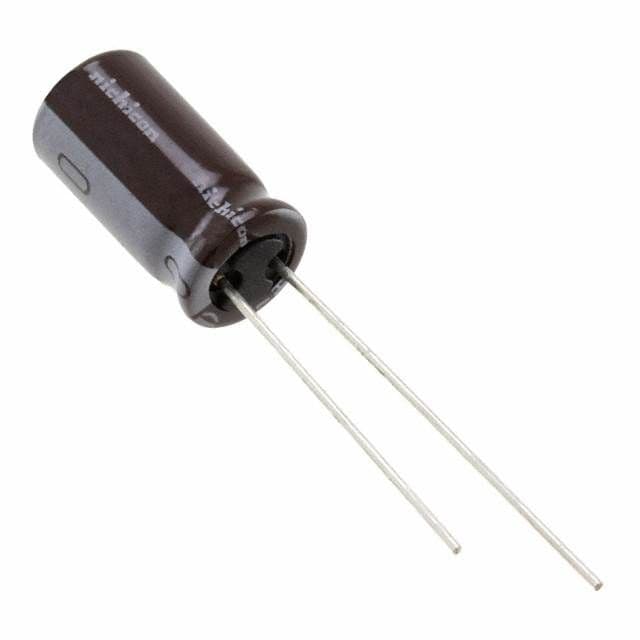

Nichicon UVC2G8R2MPD technical specifications.
General
Capacitance
8.2uF
Package/Case
Radial
Diameter
8mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Lead/Base Style
Straight
Length
16mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Ripple Current
85mA
RoHS Compliant
Yes
Series
UVC
Termination
Radial
Tolerance
20%
Voltage Rating
400V
DC Rated Voltage
400V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVC2G8R2MPD Datasheet
Download the complete datasheet for Nichicon UVC2G8R2MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
