Standard aluminum electrolytic capacitor with 3.3µF capacitance and 50V DC rating. Features 20% tolerance, 27mA ripple current, and a 2000-hour life at 85°C. This radial component has a 2mm lead pitch, 5mm diameter, and 11mm height, suitable for through-hole mounting. Operating temperature range is -40°C to 85°C.
PackageRadial
Capacitance3.3uF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UVP1H3R3MDD technical specifications.
General
Capacitance
3.3uF
Package/Case
Radial
Diameter
5mm
Dielectric Material
Aluminium
Dissipation Factor
0.14%
Height
11mm
Height - Seated (Max)
0.492inch
Lead Diameter
0.5mm
Lead Pitch
2mm
Leakage Current
4.95uA
Length
11mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
27mA
RoHS Compliant
Yes
Series
VP
Termination
Radial
Tolerance
20%
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVP1H3R3MDD Datasheet
Download the complete datasheet for Nichicon UVP1H3R3MDD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

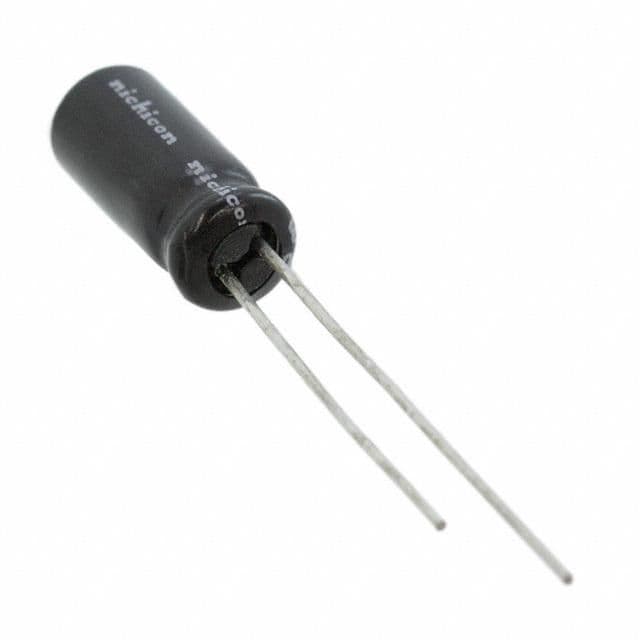

Product Images
