Aluminum electrolytic capacitor with 22µF capacitance and 63V DC rating. Features a 20% tolerance, 8mm diameter, and 11.5mm height with a 3.5mm lead pitch. Rated for 95mA ripple current and 2000 hours of life at 85°C. Through-hole mounting with radial termination.
PackageRadial
Capacitance22uF
Voltage Rating63V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UVP1J220MPD technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
Height
11.5mm
Height - Seated (Max)
0.512inch
Lead Pitch
3.5mm
Leakage Current
41.58uA
Length
11.5mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
95mA
Ripple Current (AC)
95mA
RoHS Compliant
Yes
Series
VP
Termination
Radial
Tolerance
20%
Voltage Rating
63V
DC Rated Voltage
63V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVP1J220MPD Datasheet
Download the complete datasheet for Nichicon UVP1J220MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

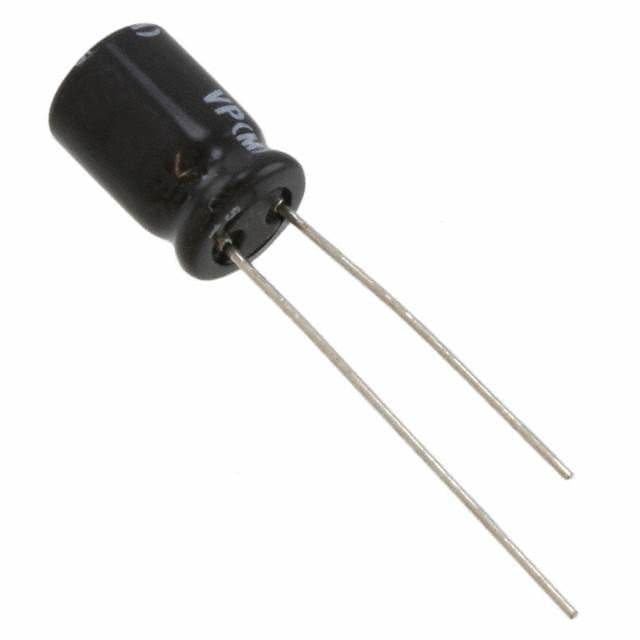

Product Images
