Standard aluminum electrolytic capacitor, 1000µF capacitance, 35V DC rated voltage, and 20% tolerance. Features a radial package with 7.5mm lead pitch, 16mm diameter, and 31.5mm height. Offers 2000 hours of life at 85°C, 1.14A ripple current, and 1.05mA leakage current. Through-hole mounting, RoHS compliant, and suitable for automotive applications.
PackageRadial
Capacitance1mF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UVP1V102MHD technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| Height | 31.5mm |
| Height - Seated (Max) | 1.319inch |
| Lead Pitch | 7.5mm |
| Leakage Current | 1.05mA |
| Length | 31.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.14A |
| RoHS Compliant | Yes |
| Series | VP |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVP1V102MHD Datasheet
Download the complete datasheet for Nichicon UVP1V102MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

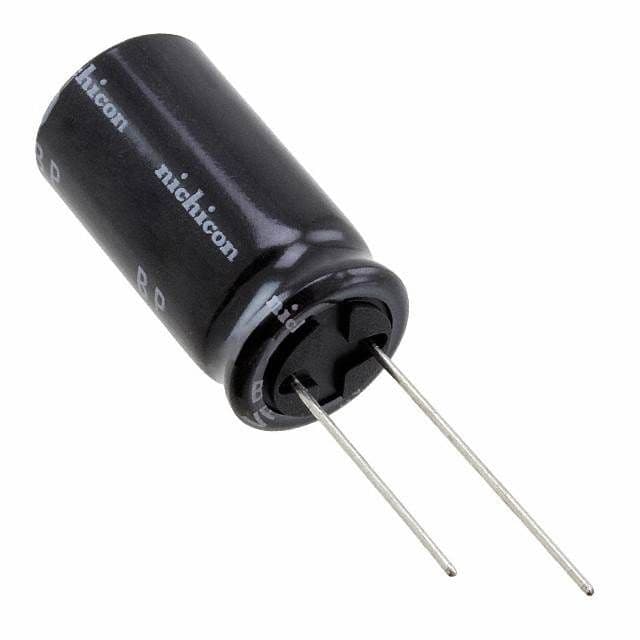

Product Images
