Technical Specifications
Nichicon UVR1H220MDA technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Diameter | 5mm |
| Height | 11mm |
| Lead Free | Contains Lead |
| Lead Pitch | 2mm |
| Length | 11mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| RoHS Compliant | No |
| Series | UVR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Not Compliant |
Datasheet
Nichicon UVR1H220MDA Datasheet
Download the complete datasheet for Nichicon UVR1H220MDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

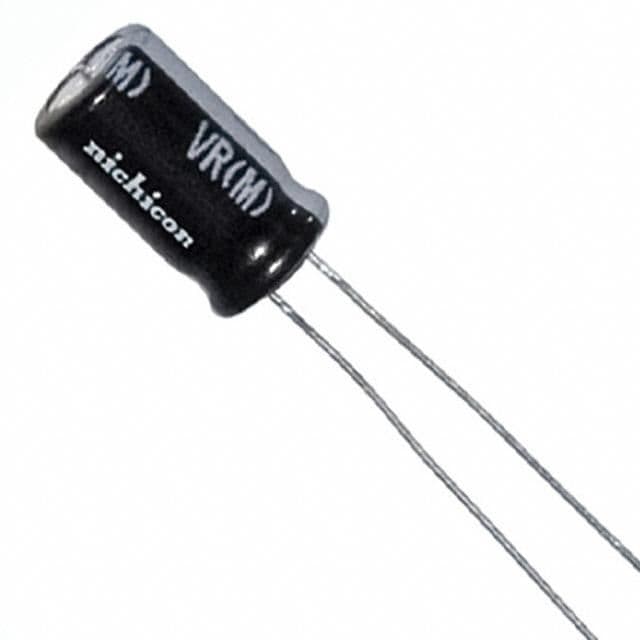

Product Images
