Aluminum electrolytic capacitor, polarized, 330µF capacitance with a 20% tolerance, rated for 50V DC. Features a radial leaded, through-hole mount package with a 5mm lead pitch and 0.6mm lead diameter. Operates across a temperature range of -40°C to 85°C, offering a ripple current of 590mA and a leakage current of 495µA. Dissipation factor is 0.12%, with a rated life of 2000 hours. RoHS compliant.
PackageRadial
Voltage50V
Capacitance330uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon UVR1H331MPD1TD technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
Height
16mm
Height - Seated (Max)
0.689inch
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
495uA
Length
16mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
590mA
RoHS Compliant
Yes
Series
VR
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVR1H331MPD1TD Datasheet
Download the complete datasheet for Nichicon UVR1H331MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

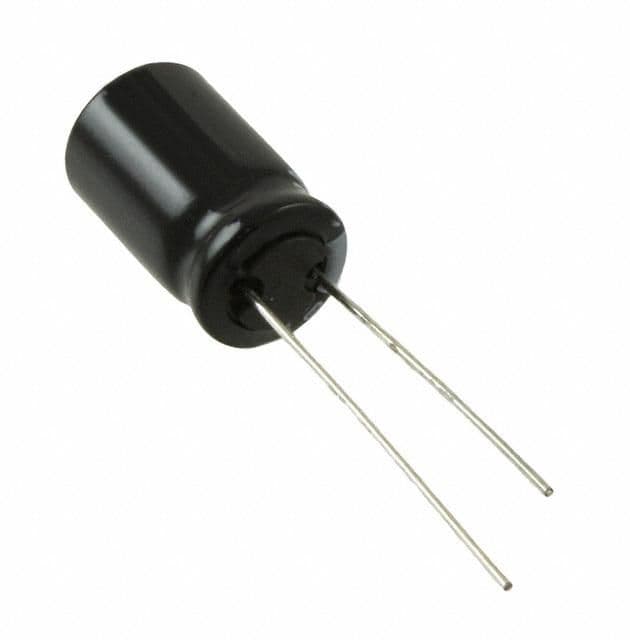

Product Images
