Technical Specifications
Nichicon UVR1J682MRD technical specifications.
General
| Capacitance | 6.8mF |
| Package/Case | Radial |
| Diameter | 25mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.1% |
| Height | 50mm |
| Lead Free | Lead Free |
| Lead Pitch | 12.5mm |
| Leakage Current | 12.852mA |
| Length | 50mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 140 |
| Packaging | Bulk |
| Ripple Current | 3.9A |
| RoHS Compliant | Yes |
| Series | UVR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVR1J682MRD Datasheet
Download the complete datasheet for Nichicon UVR1J682MRD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

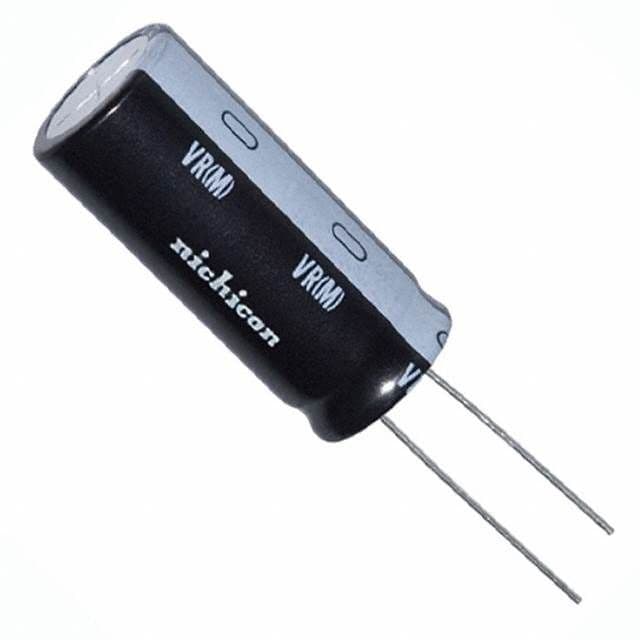

Product Images
