Technical Specifications
Nichicon UVR2C471MRD technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.2% |
| Lead Diameter | 1mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 3.108mA |
| Length | 40mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Ripple Current | 1.41A |
| RoHS Compliant | Yes |
| Series | UVR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 160V |
| DC Rated Voltage | 160V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVR2C471MRD Datasheet
Download the complete datasheet for Nichicon UVR2C471MRD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

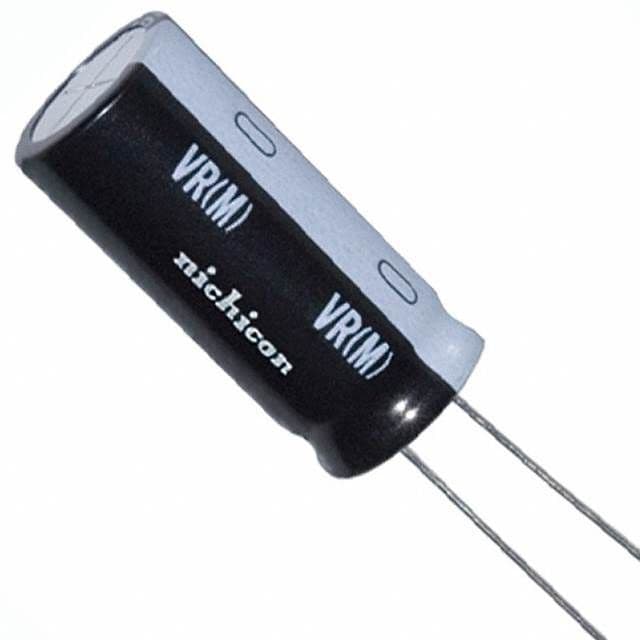

Product Images
