Aluminum electrolytic capacitor, polarized, 450V DC rated voltage, 10µF capacitance, 20% tolerance. Features radial leads for through-hole PCB mounting, 90mA ripple current, and 280µA leakage current. Operates from -25°C to 85°C with a 2000-hour life rating. RoHS compliant.
PackageRadial
Voltage450V
Capacitance10uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Nichicon UVR2W100MHD1TO technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.25% |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 280uA |
| Length | 20mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 90mA |
| RoHS Compliant | Yes |
| Series | VR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVR2W100MHD1TO Datasheet
Download the complete datasheet for Nichicon UVR2W100MHD1TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

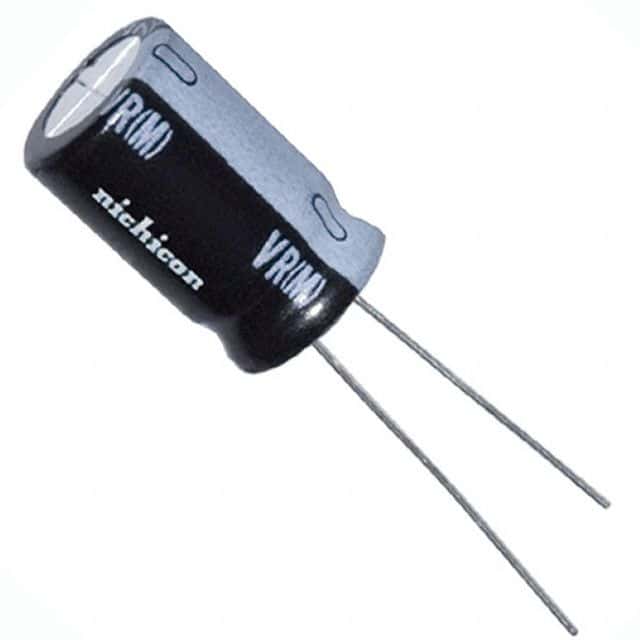

Product Images
