Standard aluminum electrolytic capacitor with 470µF capacitance and 10V DC rated voltage. Features a 20% tolerance, 2.5mm lead pitch, and 6.3mm diameter. Operates across a -55°C to 105°C temperature range with a 1000-hour life at rated conditions. Offers 250mA ripple current capability and 141µA leakage current. Through-hole, PCB mountable with radial termination.
PackageRadial
Voltage10V
Capacitance470uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UVY1A471MED technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
RADIAL
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.24%
Height
11mm
Lead Diameter
0.5mm
Lead Pitch
2.5mm
Leakage Current
141uA
Length
11mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
250mA
RoHS Compliant
Yes
Series
VY
Termination
Radial
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVY1A471MED Datasheet
Download the complete datasheet for Nichicon UVY1A471MED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

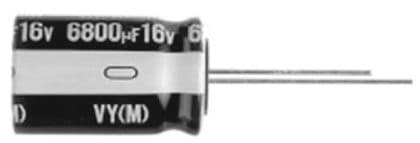

Product Images
