100µF, 25V polarized aluminum electrolytic capacitor with radial leads for through-hole mounting. Features a 20% tolerance, 105°C maximum operating temperature, and a 1000-hour life. Dissipation factor is 0.16%, with a ripple current of 125mA. RoHS compliant and lead-free.
PackageRadial
Capacitance100uF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UVY1E101MDD1TD technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| Height | 11mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Lead/Base Style | Straight |
| Length | 11mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 2000 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 125mA |
| RoHS Compliant | Yes |
| Series | UVY |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVY1E101MDD1TD Datasheet
Download the complete datasheet for Nichicon UVY1E101MDD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

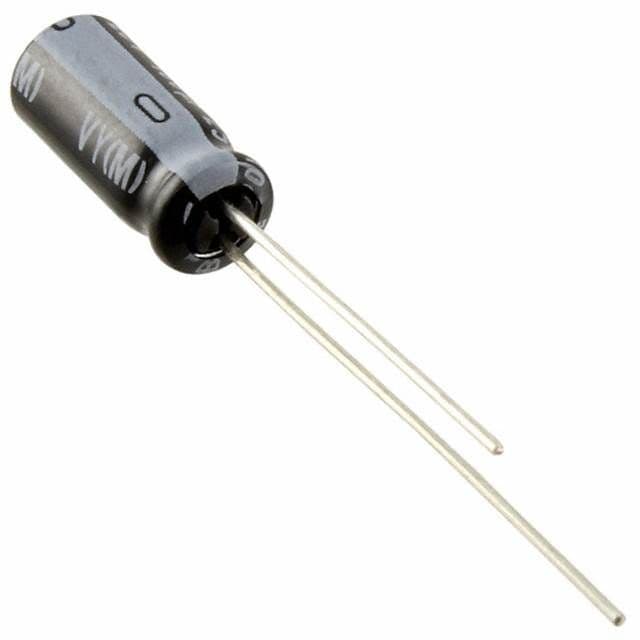

Product Images
