This Nichicon UVY aluminum electrolytic capacitor has a capacitance of 470uF, a voltage rating of 25V, and a tolerance of 20%. It is designed for operation in temperatures ranging from -55°C to 105°C. The capacitor is packaged in a radial lead style with a diameter of 10mm and a height of 12.5mm, making it suitable for through-hole mounting. The device is compliant with RoHS regulations and is available on cut tape.
PackageRadial
Capacitance470uF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UVY1E471MPD1TD technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Height | 12.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | UVY |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVY1E471MPD1TD Datasheet
Download the complete datasheet for Nichicon UVY1E471MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

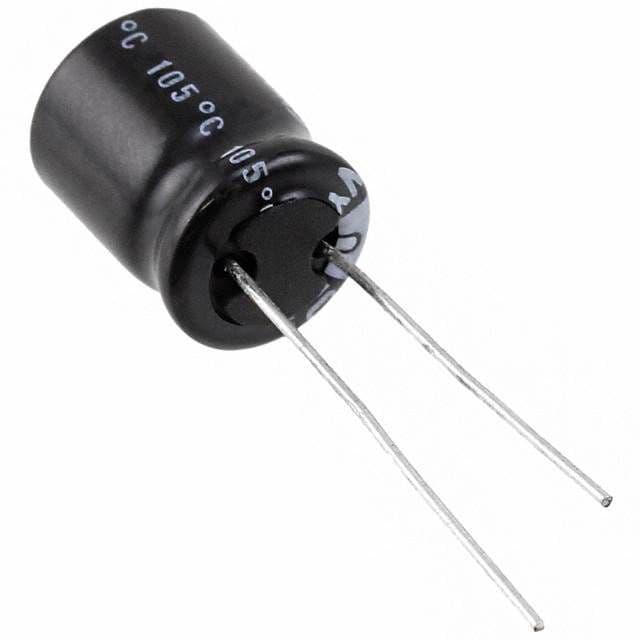

Product Images
