100µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features a 6.3mm diameter, 11mm height, and 2.5mm lead pitch. Offers a ripple current of 150mA, leakage current of 105µA, and a lifespan of 1000 hours at 105°C. Designed for through-hole PCB mounting, this polar capacitor operates from -55°C to 105°C.
PackageRadial
Voltage35V
Capacitance100uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UVY1V101MED technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
RADIAL
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.14%
Height
11mm
Height - Seated (Max)
0.492inch
Lead Diameter
0.5mm
Lead Pitch
2.5mm
Leakage Current
105uA
Length
11mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Polarity
Polar
Radiation Hardening
No
Ripple Current
150mA
Ripple Current (AC)
150mA
RoHS Compliant
Yes
Series
VY
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVY1V101MED Datasheet
Download the complete datasheet for Nichicon UVY1V101MED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

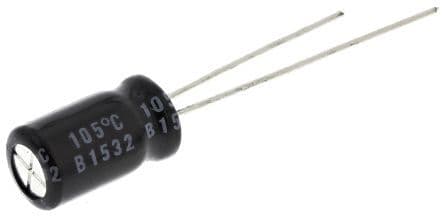

Product Images
