Technical Specifications
Nichicon UVY2V470MHD technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Diameter | 16mm |
| Lead Pitch | 7.5mm |
| Leakage Current | 758uA |
| Length | 25mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Polarity | Polar |
| Ripple Current | 210mA |
| Ripple Current (AC) | 210mA |
| RoHS Compliant | Yes |
| Series | UVY |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVY2V470MHD Datasheet
Download the complete datasheet for Nichicon UVY2V470MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

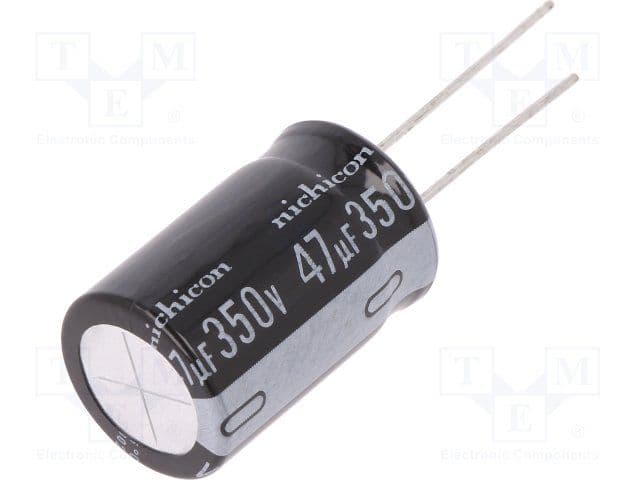

Product Images
