Technical Specifications
Nichicon UVY2W2R2MPD1TD technical specifications.
General
| Capacitance | 2.2uF |
| Package/Case | Radial |
| Height - Seated (Max) | 0.512inch |
| Lead Pitch | 0.138inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Ripple Current | 20mA |
| RoHS Compliant | Yes |
| Series | UVY |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVY2W2R2MPD1TD Datasheet
Download the complete datasheet for Nichicon UVY2W2R2MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

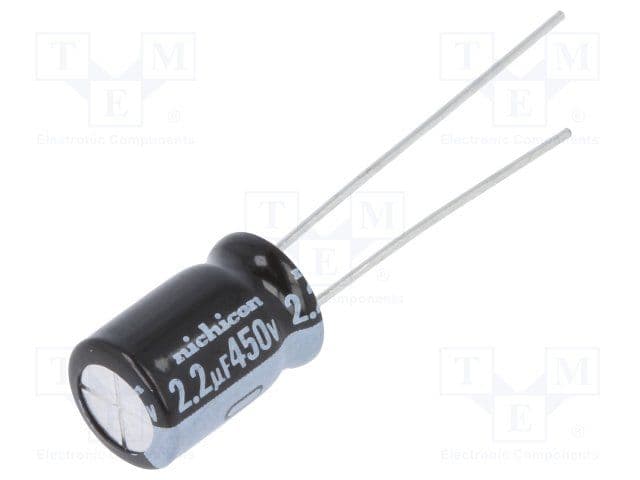

Product Images
