Aluminum electrolytic capacitor with 22mF capacitance and 25V DC rated voltage. Features a 20% tolerance, 105°C maximum operating temperature, and 1000-hour life expectancy. This radial component has a 25mm diameter, 50mm height, and 12.5mm lead pitch, with a ripple current rating of 3.25A. It offers a leakage current of 16.5mA and is RoHS compliant.
PackageRadial
Voltage25V
Capacitance22mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UVZ1E223MRD technical specifications.
General
| Capacitance | 22mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 25mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| Height | 50mm |
| Height - Seated (Max) | 1.969inch |
| Lead Diameter | 1mm |
| Lead Free | Lead Free |
| Lead Pitch | 12.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 16.5mA |
| Length | 50mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Ripple Current | 3.25A |
| RoHS Compliant | Yes |
| Series | VZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVZ1E223MRD Datasheet
Download the complete datasheet for Nichicon UVZ1E223MRD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

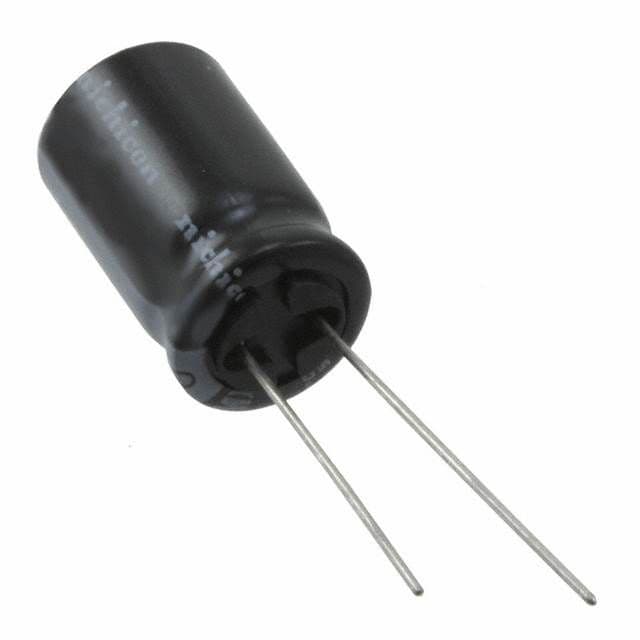

Product Images
