Technical Specifications
Nichicon UVZ1J470MED1TD technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| Height | 11mm |
| Height - Seated (Max) | 0.492inch |
| Lead Pitch | 0.098inch |
| Lead/Base Style | Straight |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 120mA |
| RoHS Compliant | Yes |
| Series | VZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVZ1J470MED1TD Datasheet
Download the complete datasheet for Nichicon UVZ1J470MED1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

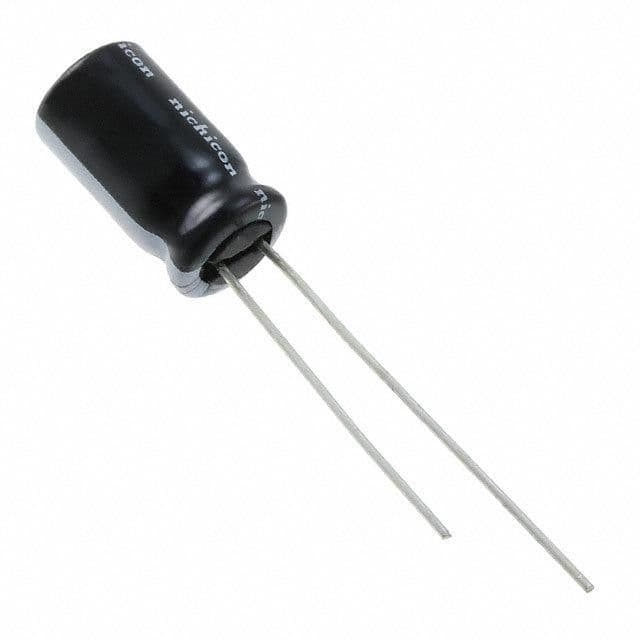

Product Images
