Aluminum electrolytic capacitor, 330µF capacitance, 35V DC rated voltage, 20% tolerance. Features a radial package with 5mm lead pitch, 0.6mm lead diameter, and dimensions of 10mm diameter by 12.5mm height. Operates across a temperature range of -55°C to 105°C with a 1000-hour life rating. Offers 350mA ripple current, 346.5µA leakage current, and a dissipation factor of 0.14%. Through-hole mounting, RoHS compliant, and supplied in bulk packaging.
PackageRadial
Voltage35V
Capacitance330uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UVZ1V331MPD technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.14%
Height
12.5mm
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
346.5uA
Length
12.5mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
350mA
RoHS Compliant
Yes
Series
VZ
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVZ1V331MPD Datasheet
Download the complete datasheet for Nichicon UVZ1V331MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

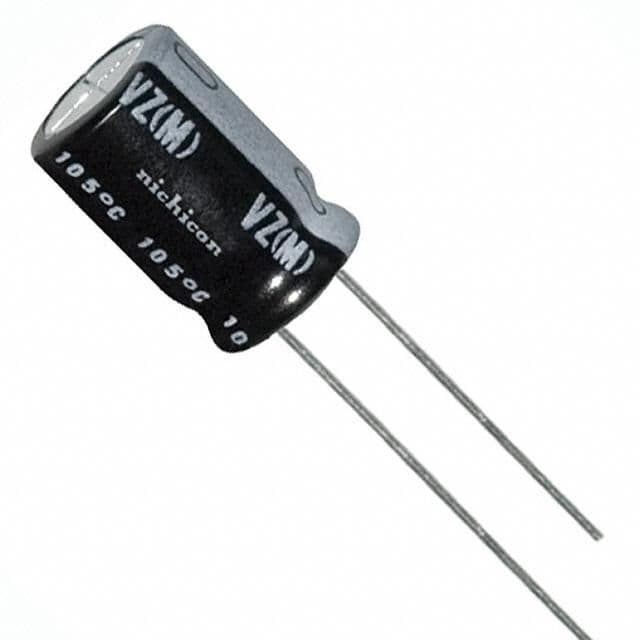

Product Images
