Aluminum electrolytic capacitor with 3300µF capacitance and 35V DC rated voltage. Features 20% tolerance, 1.61A ripple current, and 3.465mA leakage current. Radial package with 16mm diameter, 35.5mm height, and 7.5mm lead pitch. Operates from -55°C to 105°C with a 1000-hour life rating. RoHS compliant and lead-free.
PackageRadial
Voltage35V
Capacitance3.3mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UVZ1V332MHD technical specifications.
General
| Capacitance | 3.3mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.14% |
| Height | 35.5mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 3.465mA |
| Length | 35.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.61A |
| RoHS Compliant | Yes |
| Series | VZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVZ1V332MHD Datasheet
Download the complete datasheet for Nichicon UVZ1V332MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

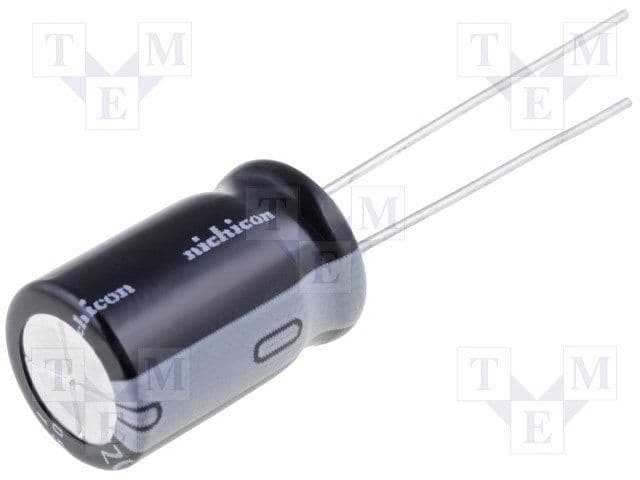

Product Images
