Aluminum electrolytic capacitor, 470µF capacitance, 35V DC rated voltage, 20% tolerance. Features a radial package with 10mm diameter and 16mm height, 5mm lead pitch, and 0.6mm lead diameter. Offers a ripple current of 460mA, leakage current of 493.5µA, and a dissipation factor of 0.14%. Rated for 1000 hours at 105°C, with an operating temperature range of -55°C to 105°C. Through-hole mounting, lead-free, RoHS compliant.
PackageRadial
Voltage35V
Capacitance470uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UVZ1V471MPD technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.14% |
| Height | 16mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 493.5uA |
| Length | 16mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 460mA |
| RoHS Compliant | Yes |
| Series | VZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVZ1V471MPD Datasheet
Download the complete datasheet for Nichicon UVZ1V471MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

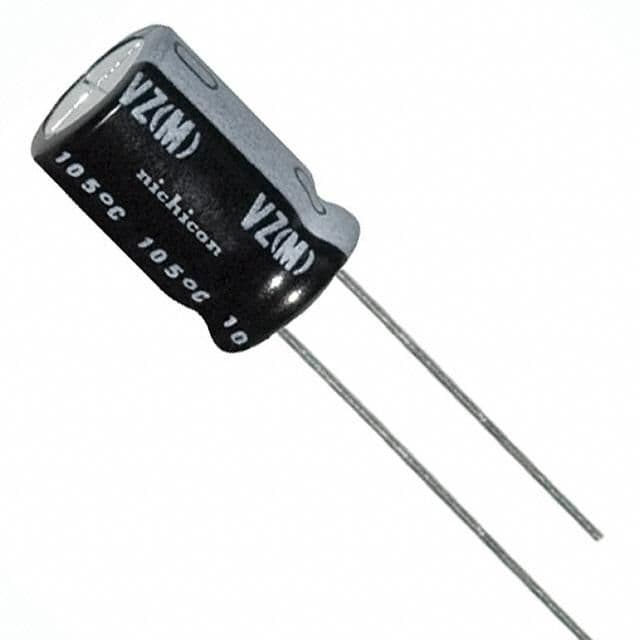

Product Images
