Aluminum electrolytic capacitor, 22µF capacitance, 160V DC rated voltage, and 20% tolerance. Features a radial package with 10mm diameter and 16mm height, 5mm lead pitch, and 0.6mm lead diameter for through-hole PCB mounting. Offers 100mA ripple current, 240.8µA leakage current, and a dissipation factor of 0.2%. Operates from -40°C to 105°C with a 1000-hour life rating. Lead-free and RoHS compliant.
PackageRadial
Voltage160V
Capacitance22uF
Voltage Rating160V
Quick Jump:
Technical Specifications
Nichicon UVZ2C220MPD technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.2%
Height
16mm
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
240.8uA
Length
16mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
100mA
RoHS Compliant
Yes
Series
VZ
Termination
Radial
Tolerance
20%
Voltage
160V
Voltage Rating
160V
DC Rated Voltage
160V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVZ2C220MPD Datasheet
Download the complete datasheet for Nichicon UVZ2C220MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

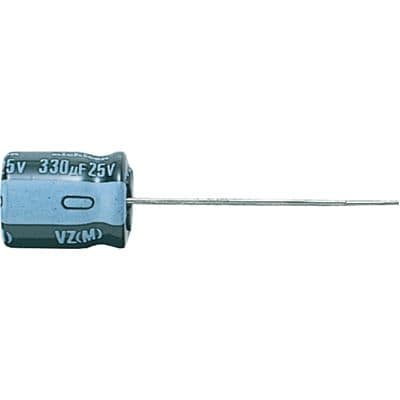

Product Images
