Aluminum electrolytic capacitor with 33µF capacitance and 160V DC rated voltage. Features a 20% tolerance, 145mA ripple current, and a maximum operating temperature of 105°C. Radial construction with a 10mm diameter and 20mm height, offering a 5mm lead pitch. Designed for through-hole PCB mounting, this RoHS compliant component has a leakage current of 311.2µA and a rated life of 1000 hours at 105°C.
PackageRadial
Voltage160V
Capacitance33uF
Voltage Rating160V
Quick Jump:
Technical Specifications
Nichicon UVZ2C330MPD technical specifications.
General
Capacitance
33uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.2%
Height
20mm
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
311.2uA
Length
20mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
145mA
RoHS Compliant
Yes
Series
VZ
Termination
Radial
Tolerance
20%
Voltage
160V
Voltage Rating
160V
DC Rated Voltage
160V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVZ2C330MPD Datasheet
Download the complete datasheet for Nichicon UVZ2C330MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

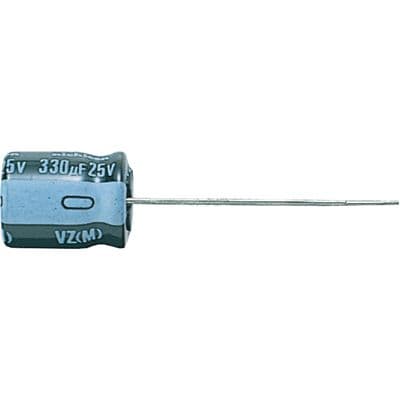

Product Images
