Aluminum electrolytic capacitor with 47µF capacitance and 200V DC rated voltage. Features 20% tolerance, 195mA ripple current, and a maximum operating temperature of 105°C. Radial package with 5mm lead pitch, 12.5mm diameter, and 20mm height. Through-hole mounting for PCB applications, RoHS compliant, and lead-free.
PackageRadial
Voltage200V
Capacitance47uF
Voltage Rating200V
Quick Jump:
Technical Specifications
Nichicon UVZ2D470MHD technical specifications.
General
Capacitance
47uF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Dielectric Material
Aluminium
Dissipation Factor
0.2%
Height
20mm
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Lead/Base Style
Straight
Leakage Current
476uA
Length
20mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ripple Current
195mA
RoHS Compliant
Yes
Series
VZ
Termination
Radial
Tolerance
20%
Voltage
200V
Voltage Rating
200V
DC Rated Voltage
200V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVZ2D470MHD Datasheet
Download the complete datasheet for Nichicon UVZ2D470MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

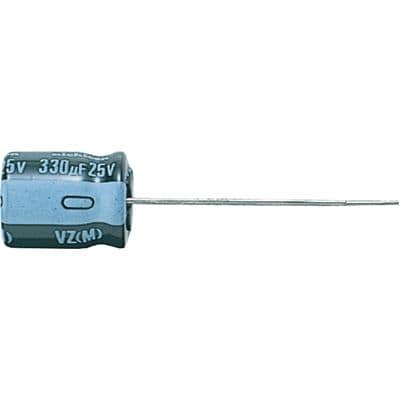

Product Images
