Aluminum electrolytic capacitor, 1µF capacitance, 250V DC rated voltage, 20% tolerance. Features a radial package with a 2.5mm lead pitch, 6.3mm diameter, and 11mm height. Operates from -40°C to 105°C with a 1000-hour life rating at rated voltage. Offers 15mA ripple current and 65µA leakage current. RoHS compliant and lead-free.
PackageRadial
Voltage250V
Capacitance1uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Nichicon UVZ2E010MED technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.2% |
| Height | 11mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 65uA |
| Length | 11mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 15mA |
| RoHS Compliant | Yes |
| Series | VZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 250V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVZ2E010MED Datasheet
Download the complete datasheet for Nichicon UVZ2E010MED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

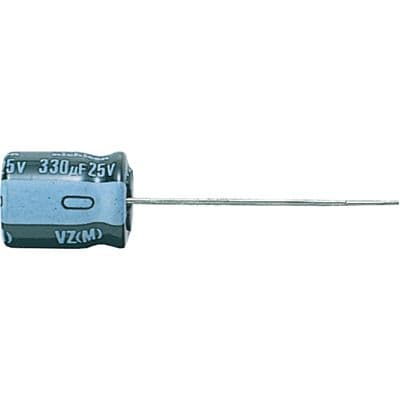

Product Images
