Aluminum electrolytic capacitor with 10µF capacitance and 250V DC rated voltage. Features 20% tolerance, 74mA ripple current, and 200µA leakage current. Operates from -40°C to 105°C with a 1000-hour life rating. Radial package with 5mm lead pitch and 0.6mm lead diameter, suitable for through-hole PCB mounting.
PackageRadial
Voltage250V
Capacitance10uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Nichicon UVZ2E100MPD1TD technical specifications.
General
Capacitance
10uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.2%
Height
16mm
Lead Diameter
0.6mm
Lead Pitch
5mm
Lead/Base Style
Straight
Leakage Current
200uA
Length
16mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
500
Packaging
Cut Tape
Reach SVHC Compliant
No
Ripple Current
74mA
RoHS Compliant
Yes
Series
VZ
Termination
Radial
Tolerance
20%
Voltage
250V
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVZ2E100MPD1TD Datasheet
Download the complete datasheet for Nichicon UVZ2E100MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

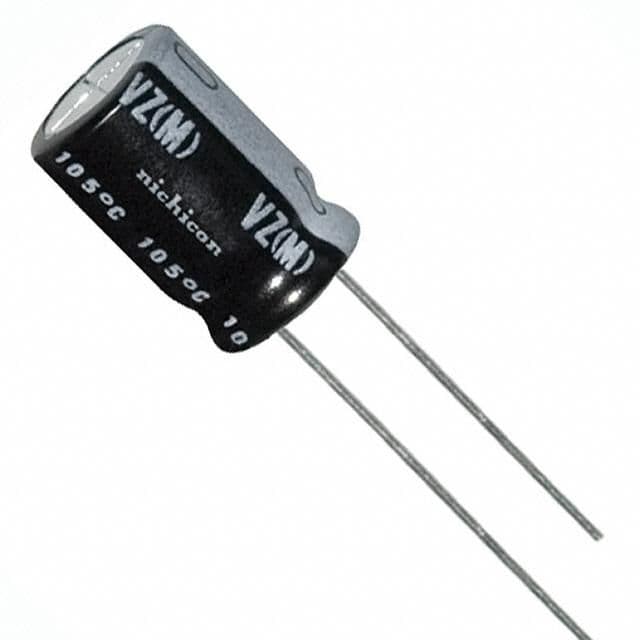

Product Images
