Aluminum electrolytic capacitor with 220µF capacitance and 250V DC rated voltage. Features a 20% tolerance, 600mA ripple current capability, and a 1000-hour life at 105°C. Radial package measures 20mm in diameter and 40mm in height, with a 10mm lead pitch. Through-hole mounting, lead-free, and RoHS compliant.
PackageRadial
Voltage250V
Capacitance220uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Nichicon UVZ2E221MRD technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Construction
RADIAL
Diameter
20mm
Dielectric Material
Aluminium
Dissipation Factor
0.2%
Height
40mm
Height - Seated (Max)
1.575inch
Lead Diameter
1mm
Lead Free
Lead Free
Lead Pitch
10mm
Leakage Current
2.3mA
Length
40mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
600mA
RoHS Compliant
Yes
Series
VZ
Termination
Radial
Tolerance
20%
Voltage
250V
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVZ2E221MRD Datasheet
Download the complete datasheet for Nichicon UVZ2E221MRD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

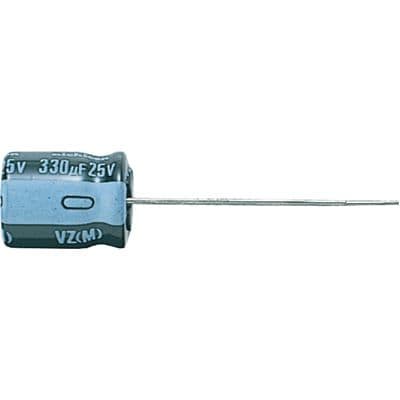

Product Images
